Lake Source Cooling SPDES DMRs

The LSC State Pollutant Discharge Elimination System (SPDES) Permit (permit No. 0244741) requires Cornell to submit two Discharge Monitoring Reports (DMRs) to the NYSDEC with monthly sampling results for a variety of parameters in Cayuga Lake and in the Heat Exchange Facility's returned lake water. Table 1 summarizes the parameters, sampling locations and calculations involved in each DMR. Table 2 contains DMR data from Cayuga Lake from 2000 to 2013. Table 3 contains DMR data reported to date for the Heat Exchange Facility's return flow. The current SPDES permit can be found here.



Table 1. Summary of parameters, sampling locations and calculations reported on monthly DMRs.

   Parameters Reported
Sampling Location
(see figure below)
      Calculations
Lake Water
  1. Total Phosphorus (TP)
  2. Soluble Reactive Phosphorus (SRP)
  3. Temperature (T)
  1. Stations 1, 3, 4, 5
  2. Stations 1, 3, 4, 5
  3. Pile Cluster
  1. Average, maximum
  2. Average, maximum
  3. Minimum 7-day average, maximum
Return Water
  1. Total Phosphorus (TP)
  2. Soluble Reactive Phosphorus (SRP)
  3. Dissolved Oxygen (DO)
  4. Flow
  5. Temperature (T)
  6. pH
  Heat Exchange Facility
  1. Average, maximum
  2. Average, maximum
  3. Average, maximum
  4. Average, maximum
  5. Average, maximum
  6. Minimum, maximum

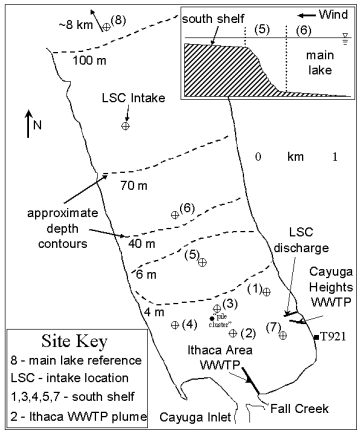

LSC Sampling Locations:

Map of Cayuga Lake with points identified as locations for sampling
